Utilities: New function „Extended Dimension Functions“

Version 7.0.2.0

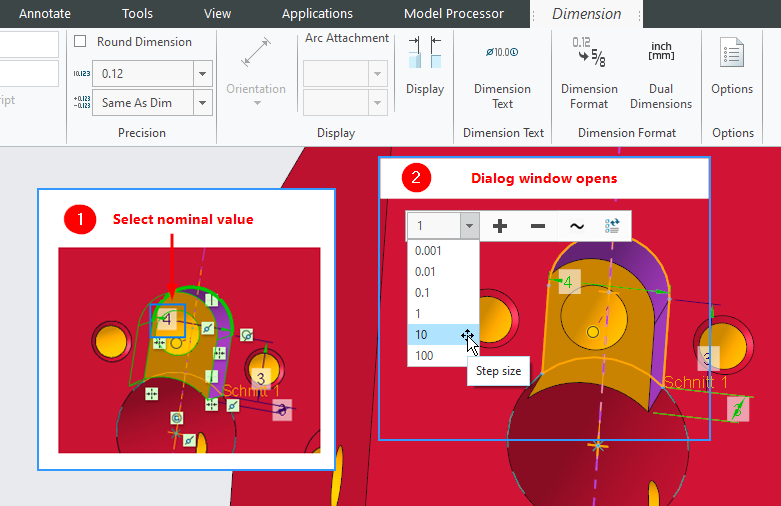

If you select a value in part and assembly mode, which is not be a measured dimension and which is not controlled by a relation, a dialog opens that allows you to quickly increase or decrease the value by one in a given step size. The modification is made on the nominal value.

If the dimension is set by hand in the Dimension tab in the Value group, this can collide with the advanced dimension functions.
