Utilities: New function „Extend Relations“

Version 7.0.0.0

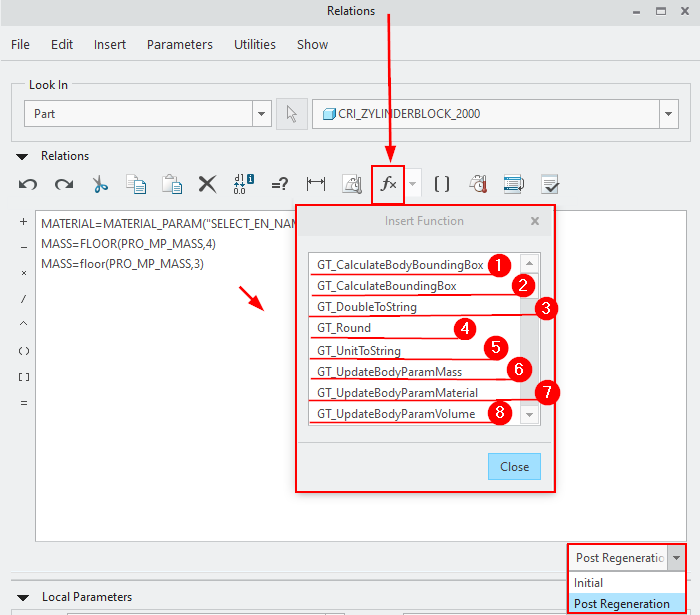

This function adds three more functions to the model relations that can be used to create parameters for models and - with Creo 7 - for bodies and ensures that the values are always up-to-date. The extended relations can be found in the Creo Relation dialog under Functions .

1. GT_CalculateBodyBoundingBox()

For each body, a parameter is created with the values of the body bounding box.

2. GT_CalculateBoundingBox("BodyParameter")

A parameter with the values of the model bounding box is created for the model.

3. GT_UpdateBodyParamMaterial("BodyParameter", "MaterialParameter")

For each body, a body parameter is assigned the value of a material parameter of the body material.
