New module „Stack Note“
Version 12.0.1.0
The new extension module Stack Note is used to select standardized information and place them in a note on a drawing. The information elements are defined by the administrator in a multilingual database and can, for example, contain information on standards or regulations. The note can be exported and imported as an XML file. A symbol in a note entry can be linked to a note, a dimension, or a symbol in the drawing.
Please note: GENIUS TOOLS Stack Note is only available with subscription license. |

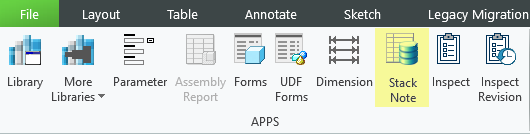

To start Stack Note
, go in the GENIUS TOOLS ribbon to the APPS section.

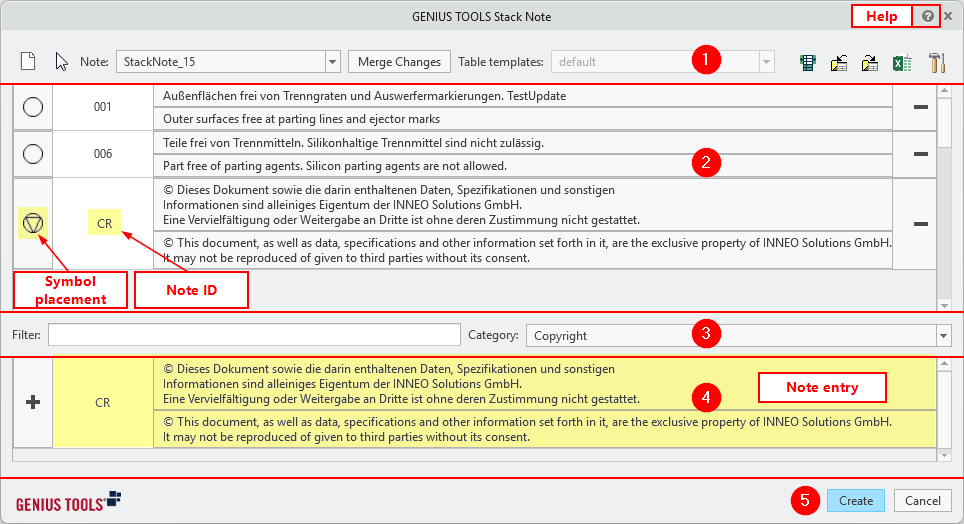

User interface
The user interface of Stack Note consists of the following elements:
1.Command bar and help button
2.Selection of note entries
3.Search input and category selection
4.List of all note entries. A note entry consists of the button for symbol placement, a note ID, and the content in one or more languages.
5.Buttons for placing and updating the note and closing the window.
