Inspect: Place and link inspection symbols automatically

Version 9.0.0.0

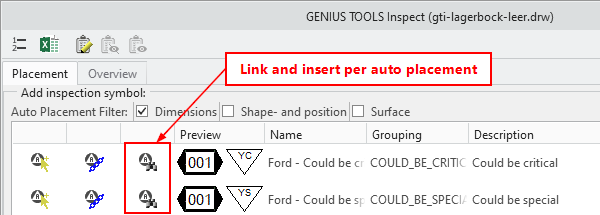

Inspection symbols can be automatically placed on selected drawing elements (dimensions, form-location tolerances and surfaces) by clicking the new button . Elements which are already linked to the selected inspection symbol are not re-linked. GENIUS TOOLS Inspect checks whether the SYM file of the selected inspection symbol matches the existing inspection symbol.

This option is made available to users in GENIUS TOOLS Inspect Editor in the tab Inspection Symbols and Tables under Inspection symbols > Details > Actions.
