Inspect / Inspect 3D: Support of additional texts according to DIN EN ISO 14405-1
Version 11.0.0.0
You can use the Creo menu Model Properties / Drawing Properties > Detailing to set that symbols can also contain texts in accordance with DIN EN ISO 14405-1. The following settings are required for this:
Option |
Value |
|---|---|
default_annotation_font |
isonormlt-regular.ttf |
symbol_font |
ISO |

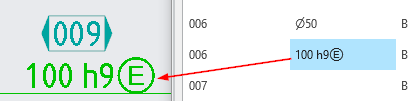

The symbols are then displayed in GENIUS TOOLS Inspect 3D and in the model in accordance with DIN EN ISO 14405-1. The same principle applies to GENIUS TOOLS Inspect and the display in the drawing. The result can look like this, for example:
